DIY| Workshop Bit Storage Cabinet

Description

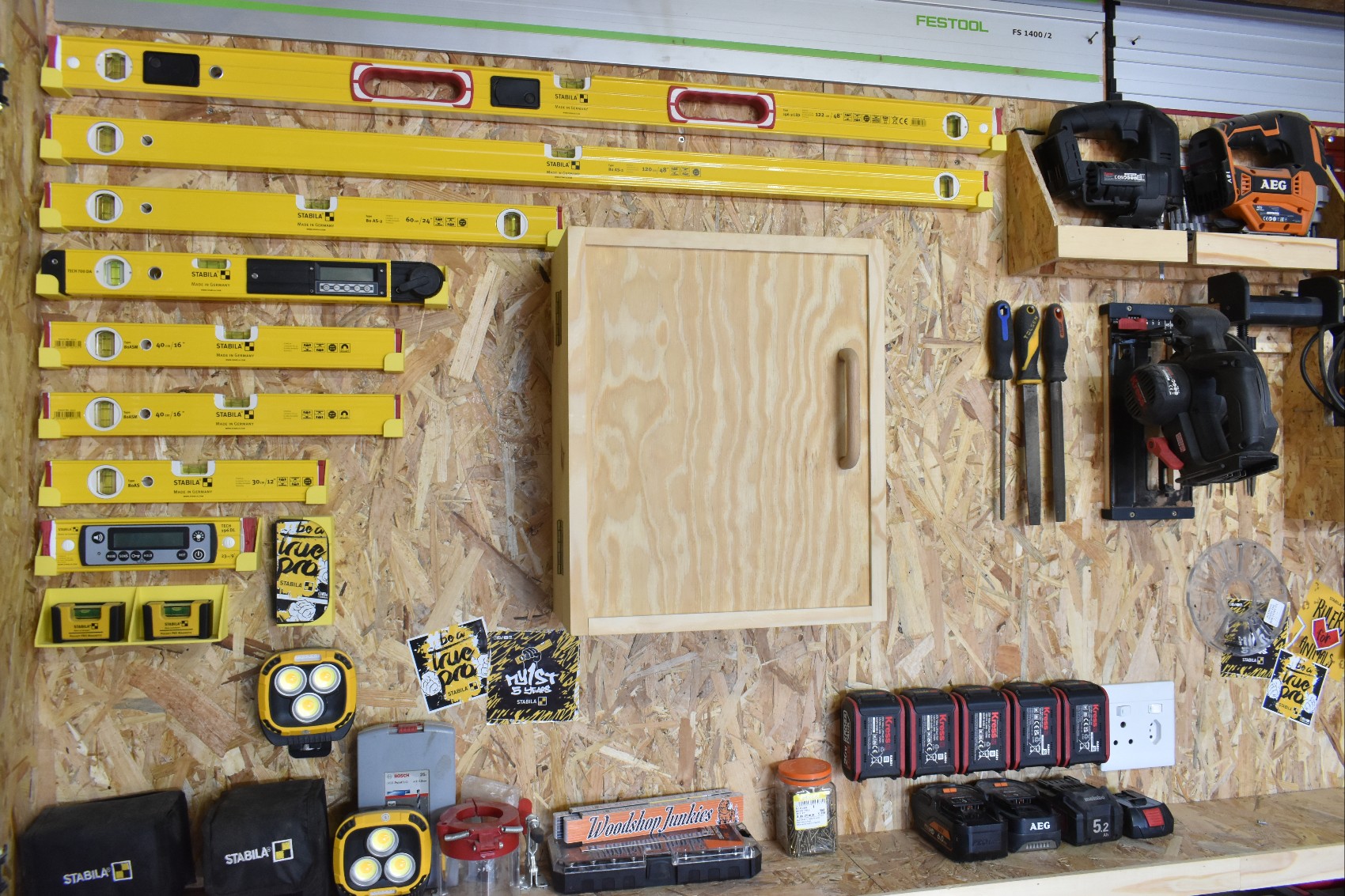

A Versatile and Convenient Bit Storage Cabinet

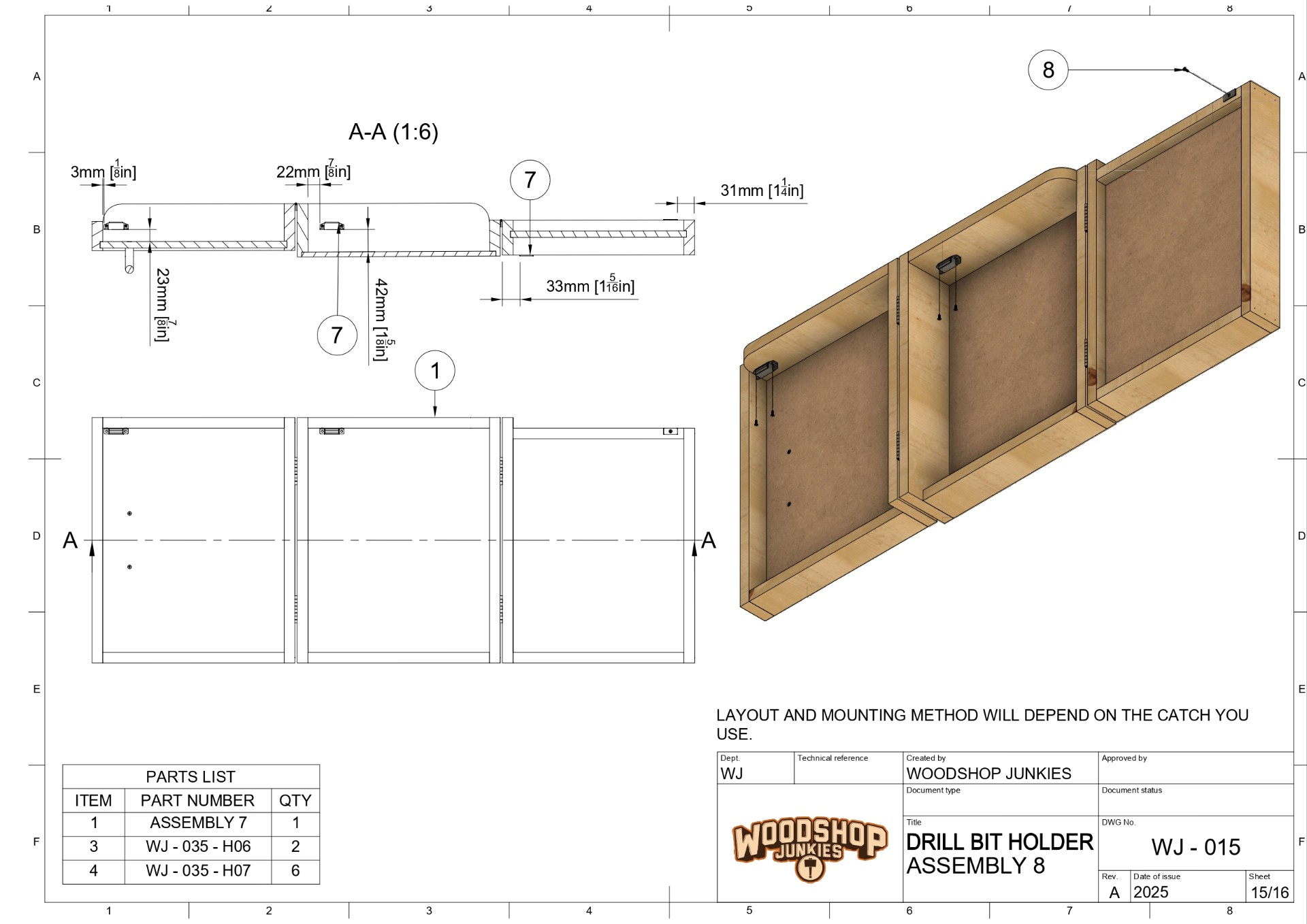

Hobbyshop woodworking plans for a compact and versatile Bit Storage Cabinet, including detailed woodworking plans and a cutting list. Available in both metric and imperial measurements (fractions).

STL Files

Download the STL files for free. Please see the link below, which will link to a zip file with all of the STL files. Please take into consideration that the STL files were specifically produced based on my storage requirements. Yours may differ and would require some customization.

These files are automatically sent with the purchase of the plan as well.

https://thewoodworkersplans.com/wp-content/uploads/2025/12/Woodshop-Junkies-STL-Files-Bit-Storage-Cabinet.zip







                                                                                                                                                                      A must-have and practical project for any Workshop- Big or Small

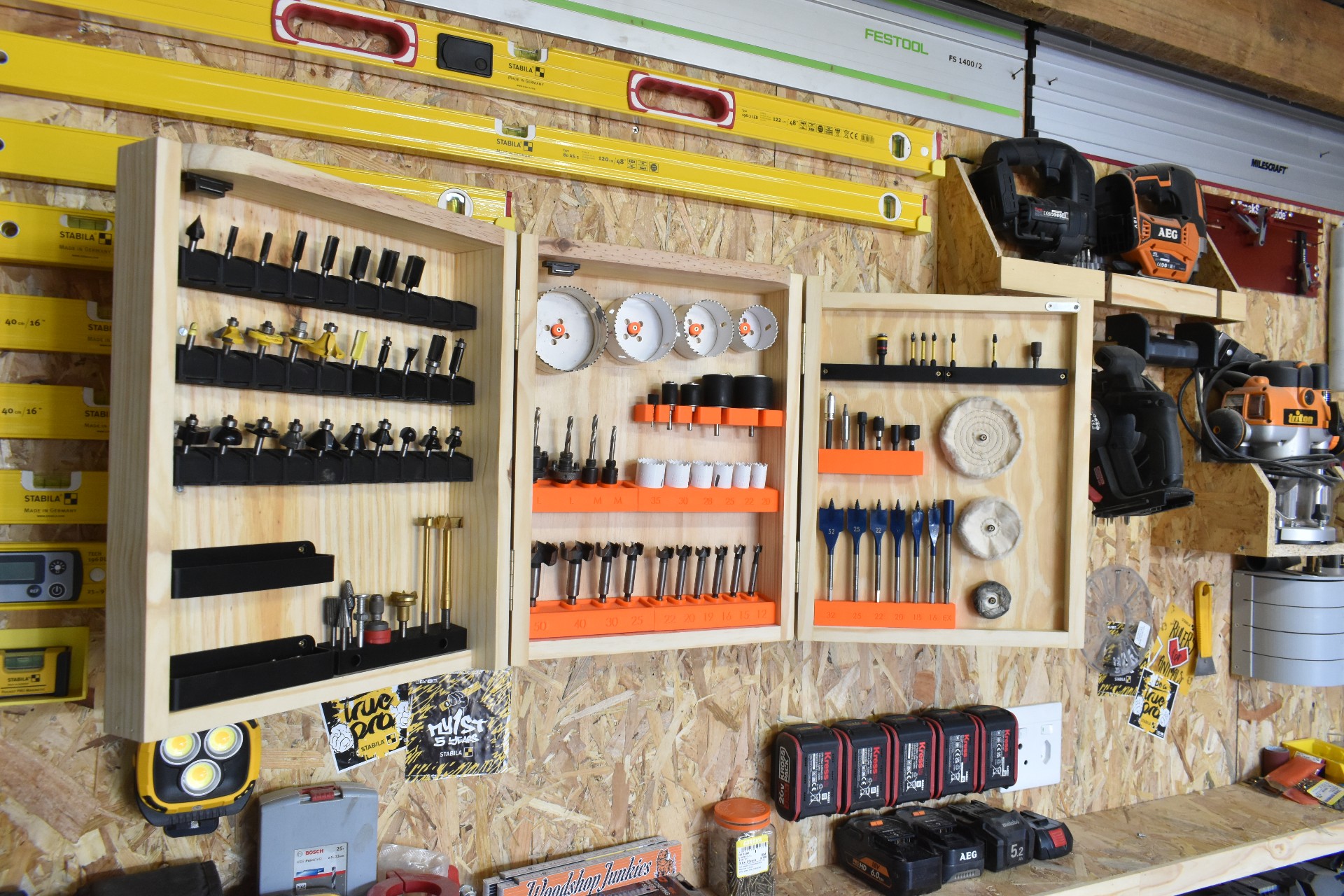

As a woodworker, you know the importance of having the right tools at your fingertips. We are all too familiar with the frequent purchases of drill bits, hole saws, screwdriver bits, and more. Over time, it becomes a challenge to keep them organized. Storing your tools in 20 different cases is simply not practical! That’s why we’re excited to share our latest endeavor: our Workshop Bit Storage Cabinet, creating a versatile storage solution for your various bits and hole saws. Imagine a single storage system that not only keeps your bits accessible but also helps you maximize your workspace and declutter your drawers. Some modern touches, like 3D printed parts, have enabled me to cut down on the weight and design without limits. This also allows me to customise the Workshop Bit Storage Cabinet to best suit my needs.

What You Can Look Forward To:

• Efficient Organization: Our solution will streamline your workspace by consolidating multiple storage cases into one intuitive system.
• Easy Access: Say goodbye to rummaging through countless boxes! Our design allows for quick identification and retrieval of your tools.
• Simple Construction: We provide the STL files so you don’t have to do any thinking or design work. Just follow the simple steps laid out in the detailed plan. NB- This will only work if you plan on storing the same items in the same spaces; otherwise, you would need to modify the plan and or the 3D Printed Parts.

PLEASE NOTE: THE 3 CABINETS’ BACKING BOARDS ARE SET AT DIFFERENT DEPTHS. THIS IS DUE TO DIFFERENT DEPTH REQUIREMENTS, BASED ON WHAT I WANTED TO STORE IN THE CABINET. EG A 5MM DRILL BIT DOESN’T NEED THE SAME SPACE AS A 50MM HOLE SAW.
