Description
A practical DIY woodworking plan to get the most out of your existing Handheld Belt Sander
Hobbyshop woodworking plans for a compact and versatile Handheld Belt Sander Mount/Holder, including detailed woodworking plans and a cutting list. Available in both metric and imperial measurements (fractions).

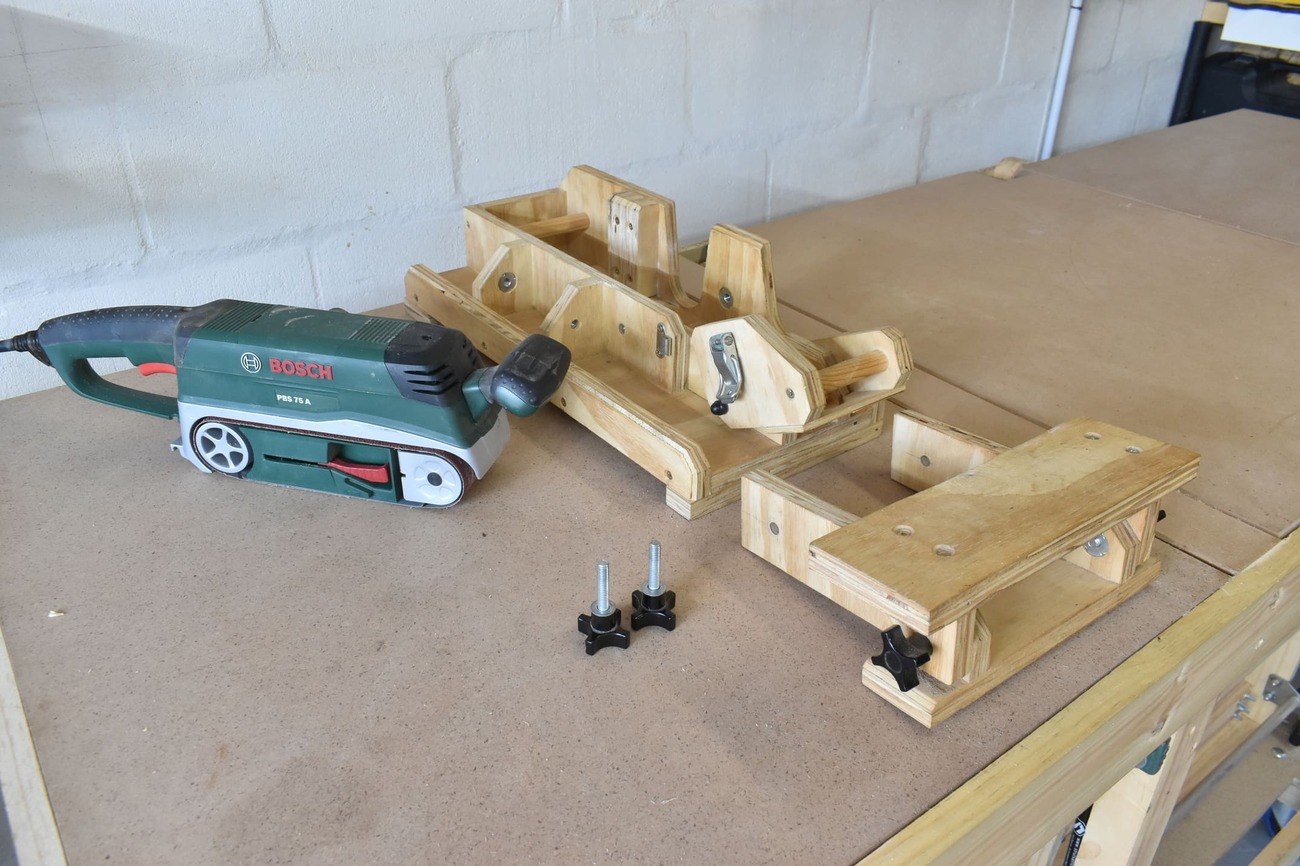

Please note that the plan is based around a specific Handheld Belt sander and is not a universal Belt Sander Holder. It is based on the Bosch PBS 75A
Maximize Your Workshop Space!
Unlock More Space by utilizing an existing tool to perform multiple roles.

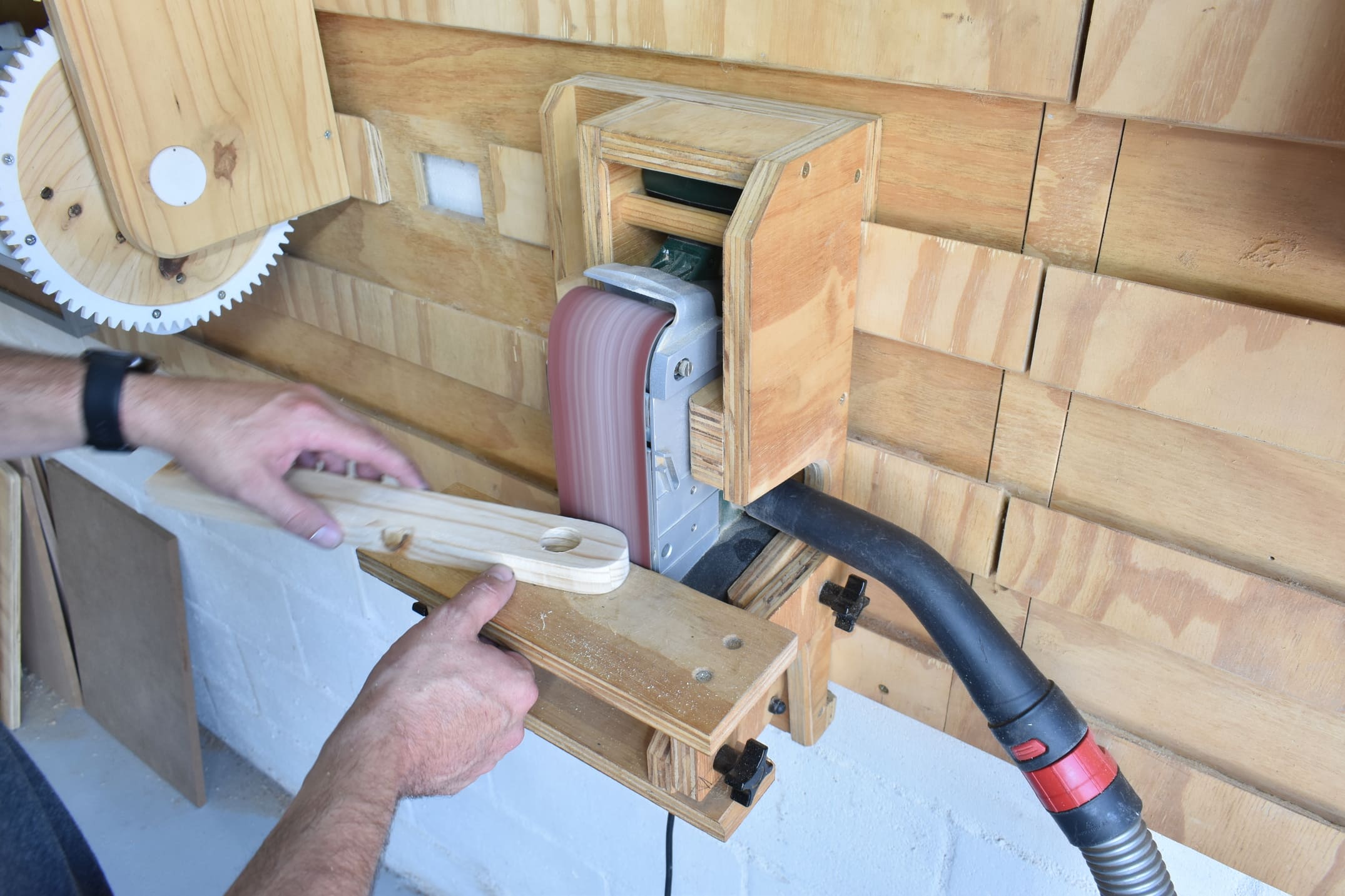

As our skill sets expand, so does our desire for new tools to make our lives easier. My belt sander was one of the first tools I acquired when I started woodworking. I had contemplated getting a combined belt and disk sander that would mount to my workbench, the drawback being that it would be permanently fixed. If i went this route, I would still need my belt sander for sanding larger items. I had the realisation that I didn’t need a new sander. I just needed to make my sander into a multi-use tool; I needed to maximise its potential. I looked at the gap that I had, sanding smaller pieces and rounding corners were the 2 main things that I was struggling with. As well as maintaining safe control of my work pieces. Hand-held belt sanders are very heavy-duty machines and lack finer control. My solution was to mount my sander to a wall or bench, along with a fence, giving me the ability to handle the smaller pieces of material that the belt sander would otherwise not be able to. The ability to use the Belt Sander by hand when needed means that i am not hindered by having excessive tools gathering dust in my small shop, where space is extremely limited.
Below is an example of the layout of the plans.
Check out some other plans we have available:
- Large Square Framed Planter| Beginner Woodworking Plan
- DIY| Workshop Bit Storage Cabinet
- Small Horizontal Planter| Simple Woodworking Plans
- Universal Outfeed support
- Ultimate DIY Tool Storage For Small Workshops
- Portable Firewood Storage Cart-DIY| Easy Assembly
- Space Saving Table Saw Station
- Small Workshop Table Plans
Product Disclaimer
The use of woodworking power machines and tools can be hazardous!
The above plans are for the Woodshop Junkies Handheld Belt Sander Holder, designed, built, and used by myself, Jean, from the Woodshop Junkies Youtube channel.
I am not a professional woodworker or engineer. These plans do not constitute professional advice and are made available for general information purposes only!
The Woodshop Junkies Handheld Belt Sander Holder Woodworking Plans were designed to be a practical DIY, easy-to-build project that also provides a lot of functionality to my workshop.
We at Woodshop Junkies take no responsibility for damage or harm to anyone as a result of a failure with the Handheld Belt Sander Holder. The design was based on my requirements, and modifications or strengthening of certain components might be needed depending on your desired application.
Please note that no load tests were performed and the purchaser is solely responsible for ensuring the safe operation of the Handheld Belt Sander Holder.
I (Jean) accept no responsibility or liability for any damage or injury suffered due to any form or use of these plans.
ALWAYS WORK SAFELY AND FOLLOW THE SAFETY INSTRUCTIONS AS SET OUT IN THE USER MANUALS OF YOUR EQUIPMENT.
