Description
A practical step-by-step guide to building a Small Parts Storage System
Hobbyshop woodworking project. The ultimate customisable Small Parts Storage System

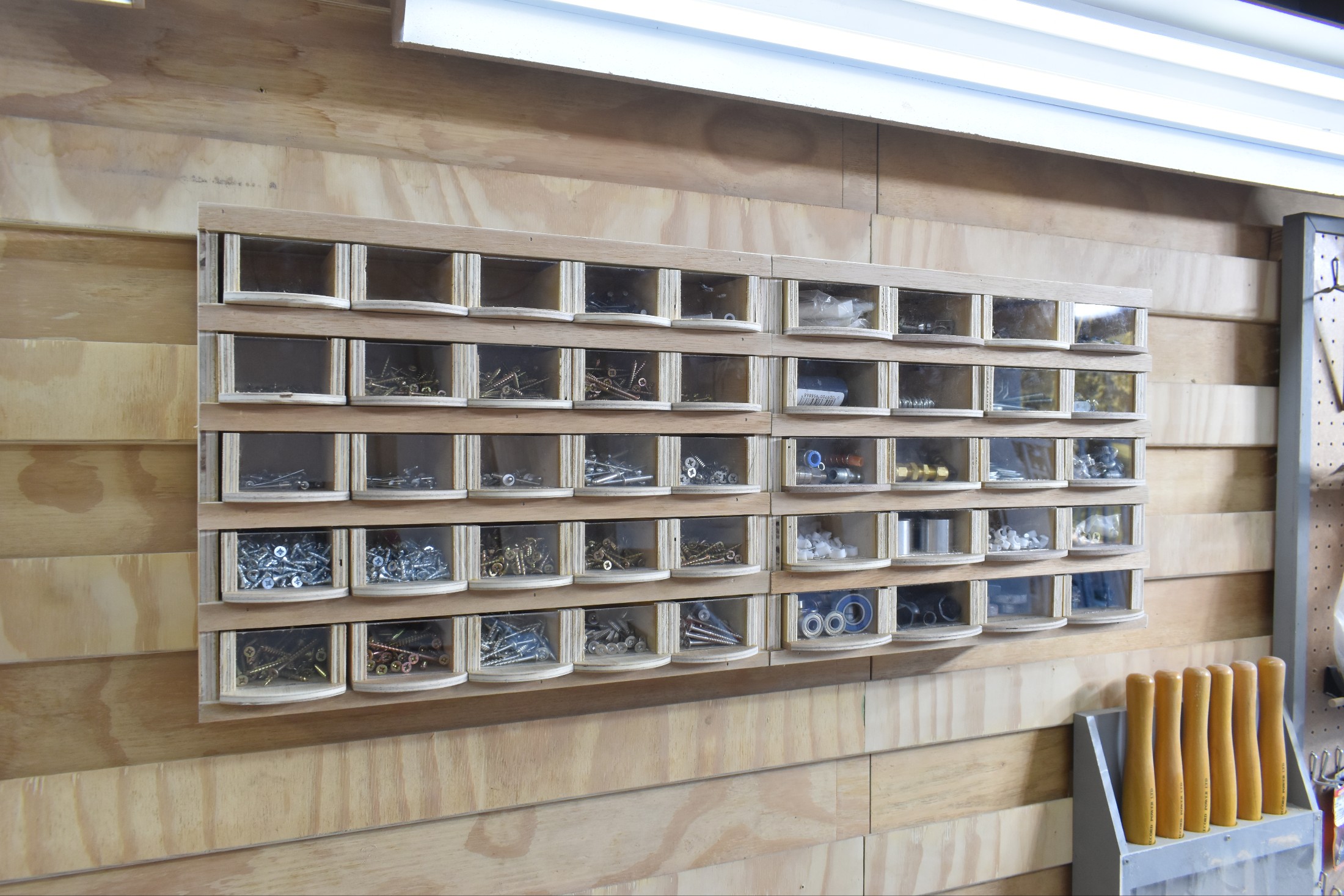

A modular and customizable Small Parts Storage System

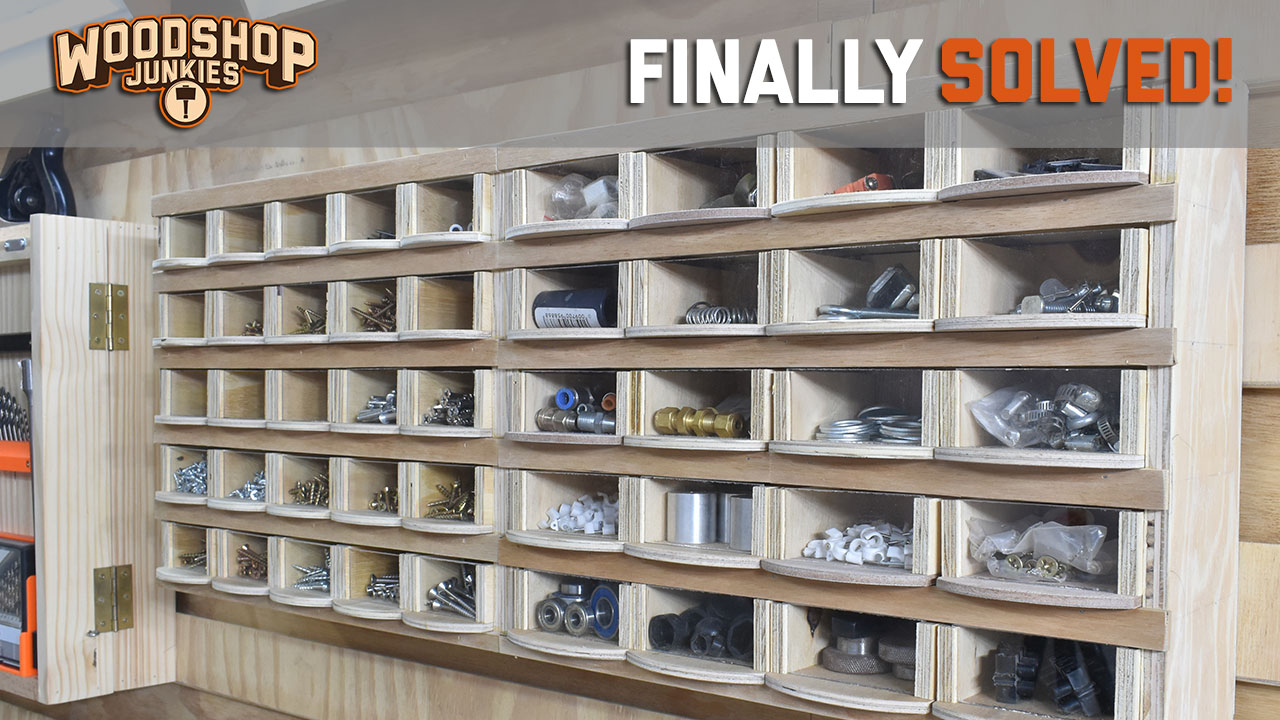

A compact, Modular Small-Parts Organizer — Built for a Busy Woodshop

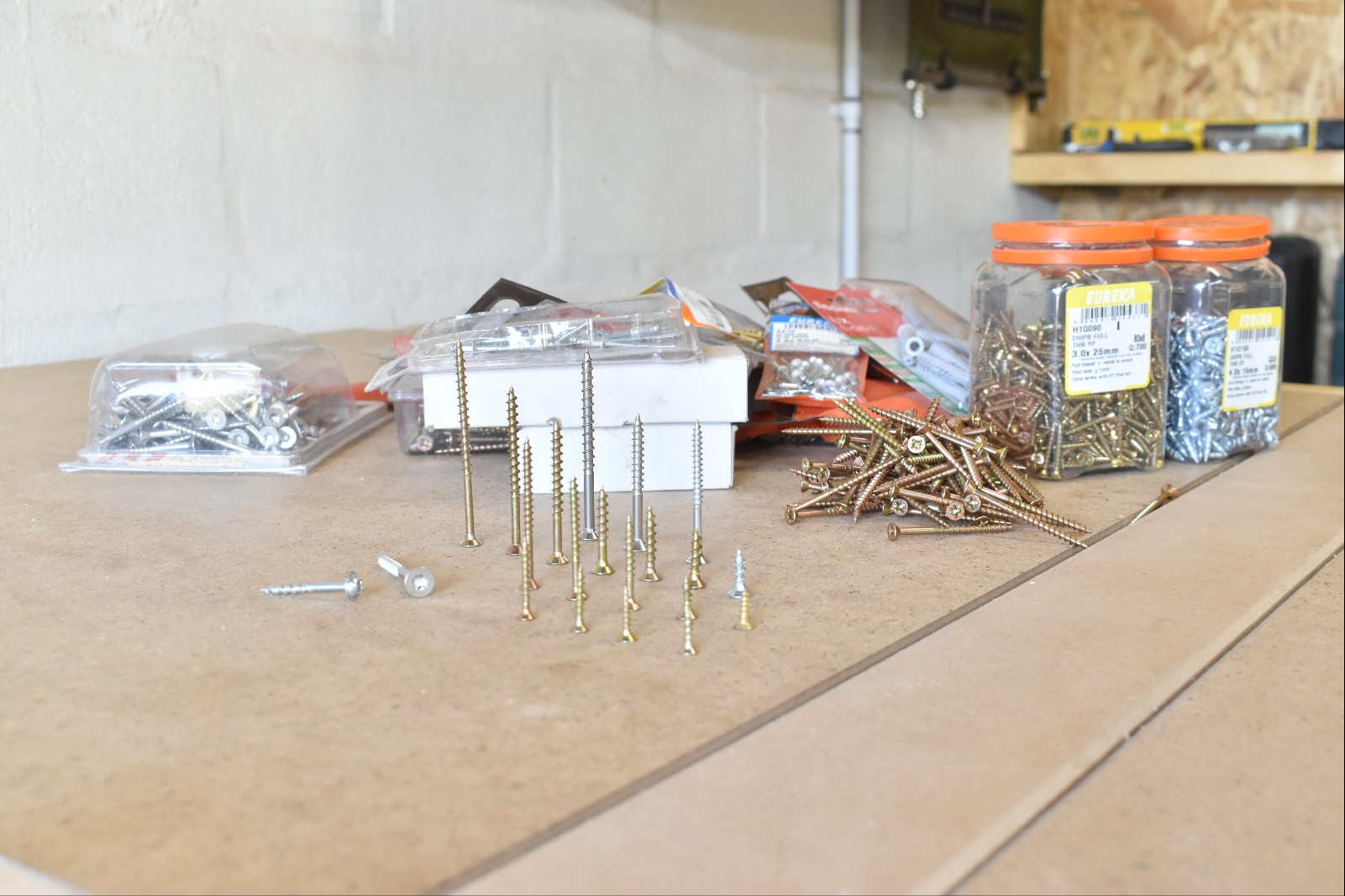

I designed and built this compact, modular small-parts organizer to solve the daily clutter of screws, nails, washers, and hardware in my woodworking shop. We have all purchased items and dumped them into a drawer, never to be seen or heard again. We know we have them, but can not find them, this is a common issue that I have struggled with for years. As with all problems, we try to solve them, and that is where my New Small Parts Organiser comes in
I designed and built this small parts organizer specifically for hobbyist woodworkers who like a challenge and prefer solutions made for their needs — not another generic plastic box from the hardware store. I’ve learned a lot from past projects, and this unit reflects those lessons.
Features:
- Fully removable drawers: take a drawer with you to your bench or job site, then pop it back in when you’re done.
- See-through drawer fronts: quickly identify parts without removing the drawer.
- Fully expandable design: add extra drawers as your collection grows or your needs change.
In this video I walk through the design choices, construction steps, and finishing touches, plus tips I learned along the way. If you’re a maker who prefers purpose-built gear, this one’s for you.
The Drawer System can be expanded to suit your needs.
Please note that there are printable STL files available to assist with certain parts of the project. Below are the 4 STL files and their descriptions.
Bin Holder– This item is used to help support the bin when you are using it around your workshop and not in the bin rack.
Printable Bin– If you don’t wish to build the storage bins out of wood, they can be 3D printed using this file.

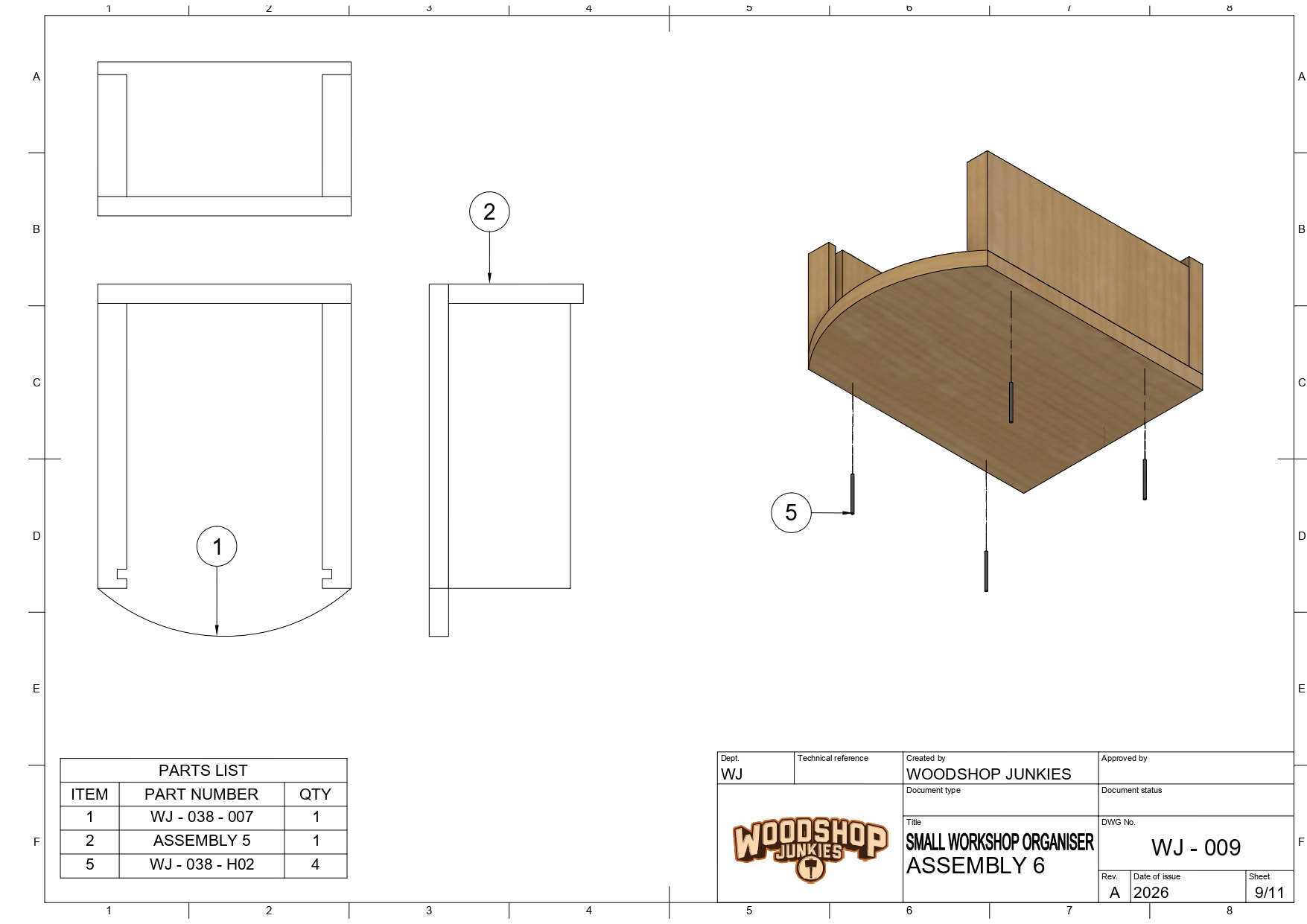

Box assembly Blank– This is a jig used to help assemble the boxes.
Shelf Spacer– This jig is used to give consistent spacing of the shelves/boxes
Check out some other plans we have available:
-
-
- Large Square Framed Planter| Beginner Woodworking Plan
- DIY| Workshop Bit Storage Cabinet
- Small Horizontal Planter| Simple Woodworking Plans
- Universal Outfeed support
- Ultimate DIY Tool Storage For Small Workshops
- Portable Firewood Storage Cart-DIY| Easy Assembly
- Space Saving Table Saw Station
- Small Workshop Table Plans
-
Product Disclaimer
The use of woodworking power machines and tools can be hazardous!
The above plans are for the Woodshop Junkies Small Parts Storage system, designed, built, and used by myself, Jean, from the Woodshop Junkies Youtube channel.
I am not a professional woodworker or engineer. These plans do not constitute professional advice and are made available for general information purposes only!
The Woodshop Junkies Small Parts Storage systemwere designed to be a practical DIY, easy-to-build project.
We at Woodshop Junkies take no responsibility for damage or harm to anyone as a result of a failure with the Small Parts Storage system. The design was based on my requirements, and modifications or strengthening of certain components might be needed depending on your desired application.
Please note that no load tests were performed and the purchaser is solely responsible for ensuring the safe operation of the Small Parts Storage system.
I (Jean) accept no responsibility or liability for any damage or injury suffered due to any form or use of these plans.
ALWAYS WORK SAFELY AND FOLLOW THE SAFETY INSTRUCTIONS AS SET OUT IN THE USER MANUALS OF YOUR EQUIPMENT.
