Description
A Practical DIY Woodworking Plan, including a detailed cutting list and step-by-step assembly instructions

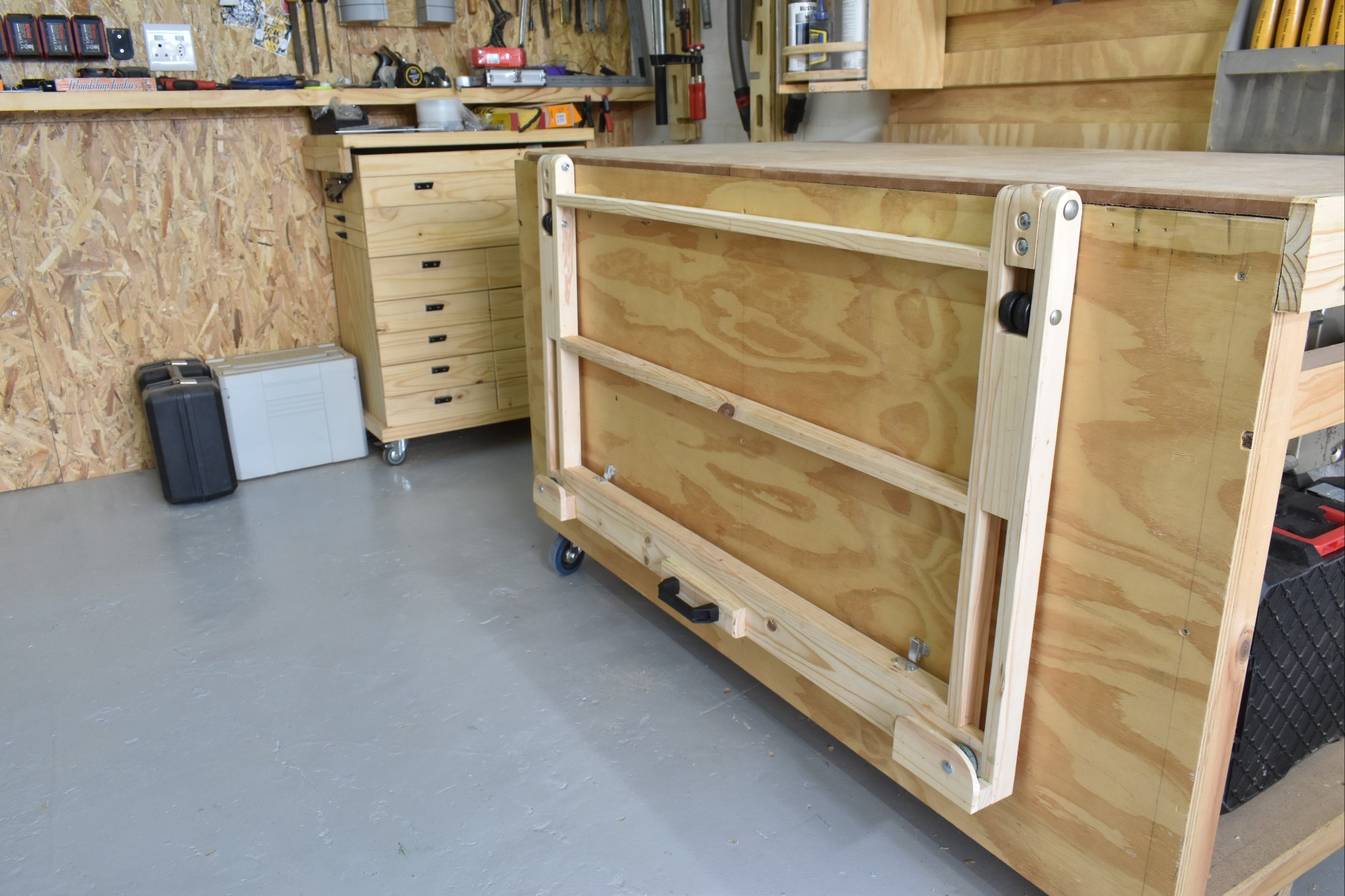

Ever tried wrestling a 4×8 sheet of Plywood or MDF solo and thought to yourself, there must be an easier way! Meet the Bolt-on Sheet Loader — the little helper your solo shop’s been waiting for. It supports the Sheet after it’s loaded, and with its pivot and rollers, you can slide large panels into place without straining your back or calling in reinforcements. Our new Sheet Loader lets you load large plywood, MDF, and other sheet goods onto your table with complete control — even when you’re working alone. The frame is mounted alongside your workbench and supports one edge of the sheet while the pivot arm and low-friction rollers guide the workpiece into place. The idea behind having rollers on the base is to allow the Sheet to be slid onto the frame, should it be too heavy to simply pick up. The Sheet Loader performs a very singular role of assisting in loading large sheets of wood that need to be broken down into smaller usable sections. Since the tool is used infrequently, I didn’t want it to take up large amounts of space when not in use. The fact that it mounts to the back of my table also means it has a virtually non-existent footprint when not in use.
Some key features of the Bolt-on Sheet Loader:
- Single-person operation: load and position 4×8 and larger sheets safely without a helper.
- Smooth control: rollers prevent jerks and snags.
- Minimal setup: bolts to most standard tables in minutes and is an easy retrofit to most woodworking tables.
- Space-friendly: compact footprint and folds out of the way when not in use.
Whether you’re a hobbyist working in a one-person shop or a pro who needs faster, safer sheet handling, the Bolt-on Sheet Loader speeds up your workflow and reduces the risk of injury and material damage.
Space-Saving Design

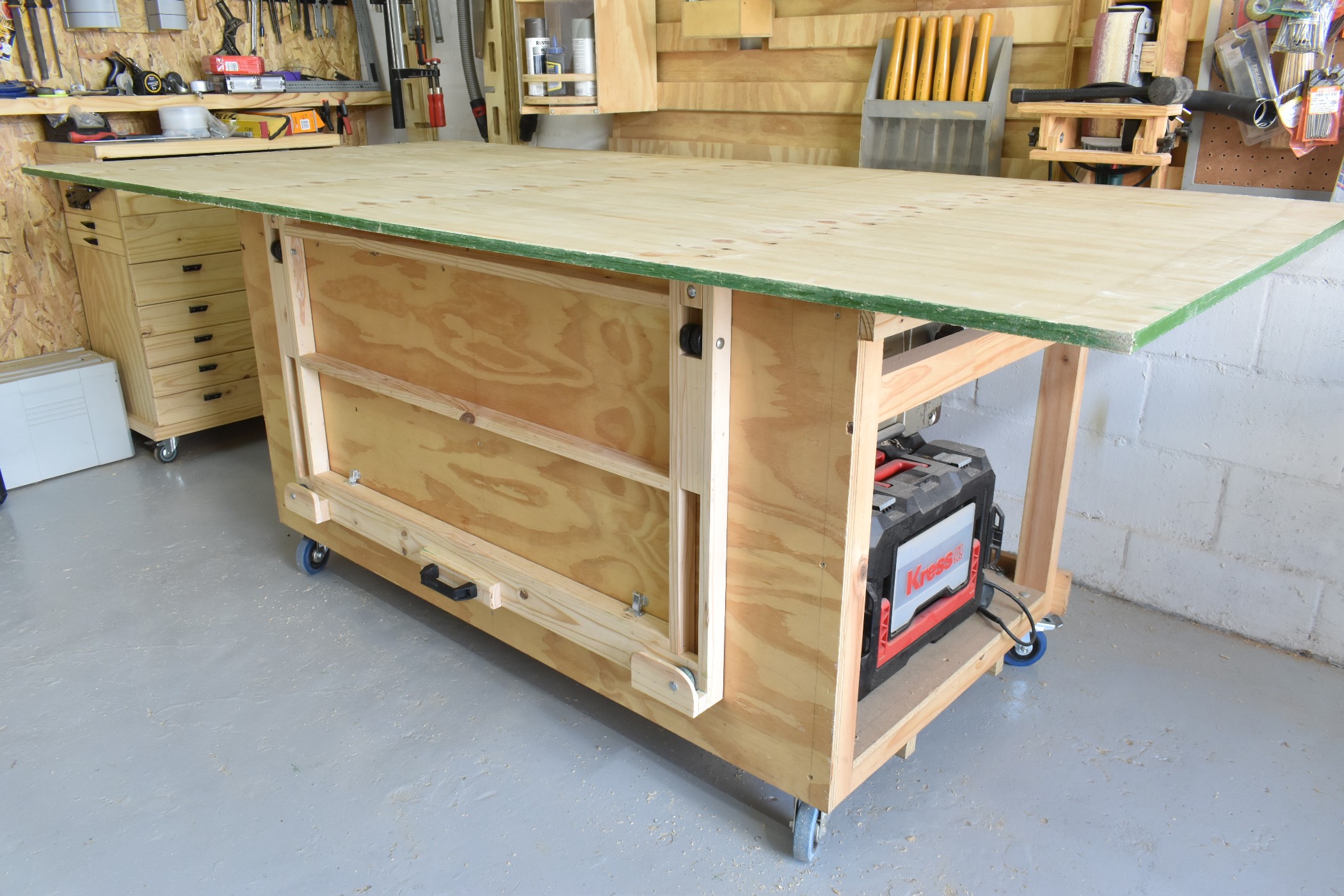

In any workshop, maximizing space is essential. The Bolt-on Sheet Loader stacks away flush against your table, out of the way, but ready to be used at a moment’s notice.
Plan Example

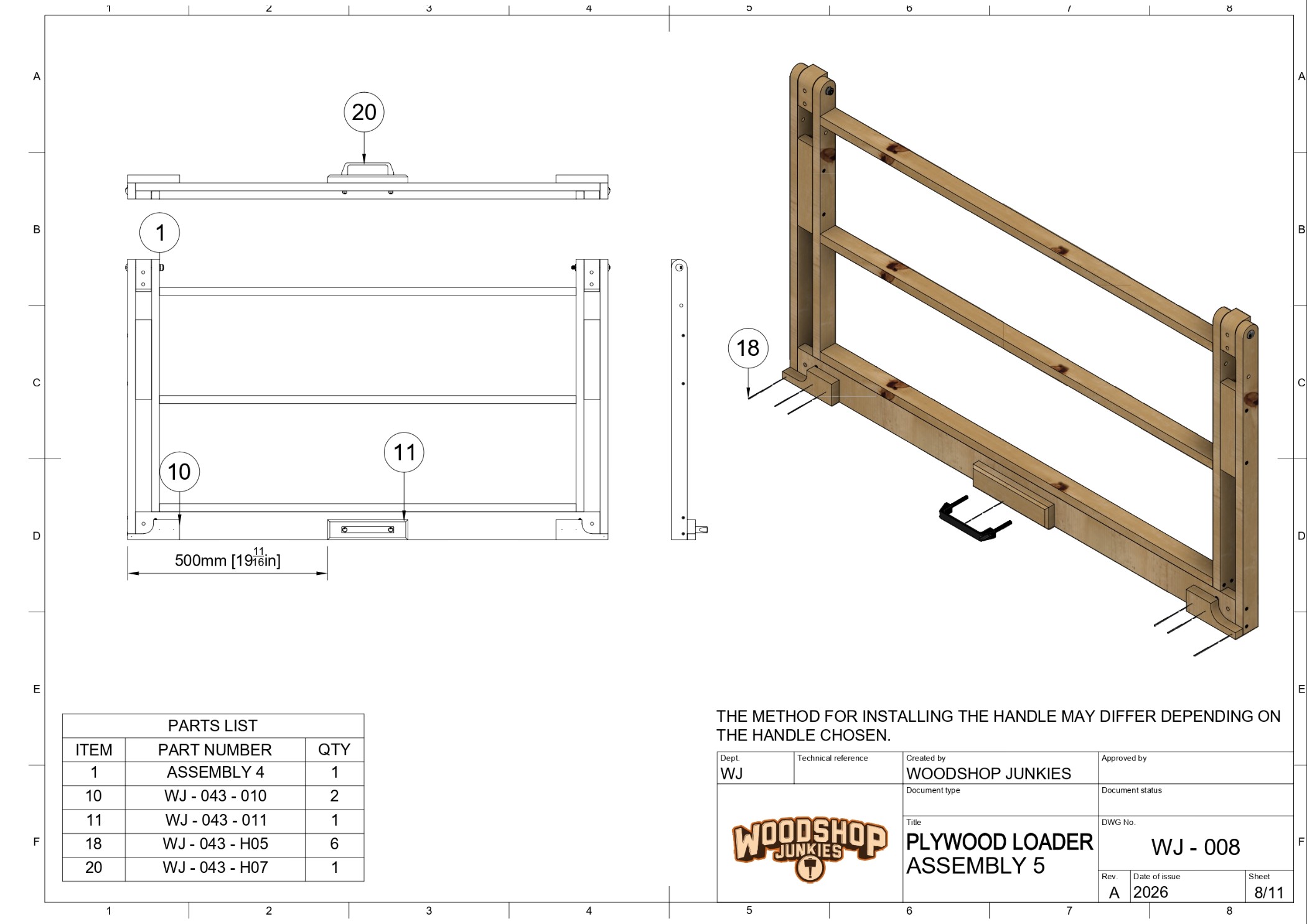

Below is an extract from the plan itself. This gives you an idea of the plan’s layout and the easy assembly instructions we include.
Check out some other plans we have available:
-
-
- Large Square Framed Planter| Beginner Woodworking Plan
- DIY| Workshop Bit Storage Cabinet
- Small Horizontal Planter| Simple Woodworking Plans
- Universal Outfeed support
- Ultimate DIY Tool Storage For Small Workshops
- Portable Firewood Storage Cart-DIY| Easy Assembly
- Space Saving Table Saw Station
- Small Workshop Table Plans
-
Product Disclaimer
The use of woodworking power machines and tools can be hazardous!
The above plans are for the Woodshop Junkies Bolt-on Sheet Loader, designed, built, and used by myself, Jean, from the Woodshop Junkies Youtube channel.
I am not a professional woodworker or engineer. These plans do not constitute professional advice and are made available for general information purposes only!
The Woodshop Junkies Bolt-on Sheet Loader was designed to be a practical DIY, easy-to-build project.
We at Woodshop Junkies take no responsibility for damage or harm to anyone as a result of a failure with the Bolt-on Sheet Loader. The design was based on my requirements, and modifications or strengthening of certain components might be needed depending on your desired application.
Please note that no load tests were performed and the purchaser is solely responsible for ensuring the safe operation of the Bolt-on Sheet Loader.
I (Jean) accept no responsibility or liability for any damage or injury suffered due to any form or use of these plans.
ALWAYS WORK SAFELY AND FOLLOW THE SAFETY INSTRUCTIONS AS SET OUT IN THE USER MANUALS OF YOUR EQUIPMENT.
