Description

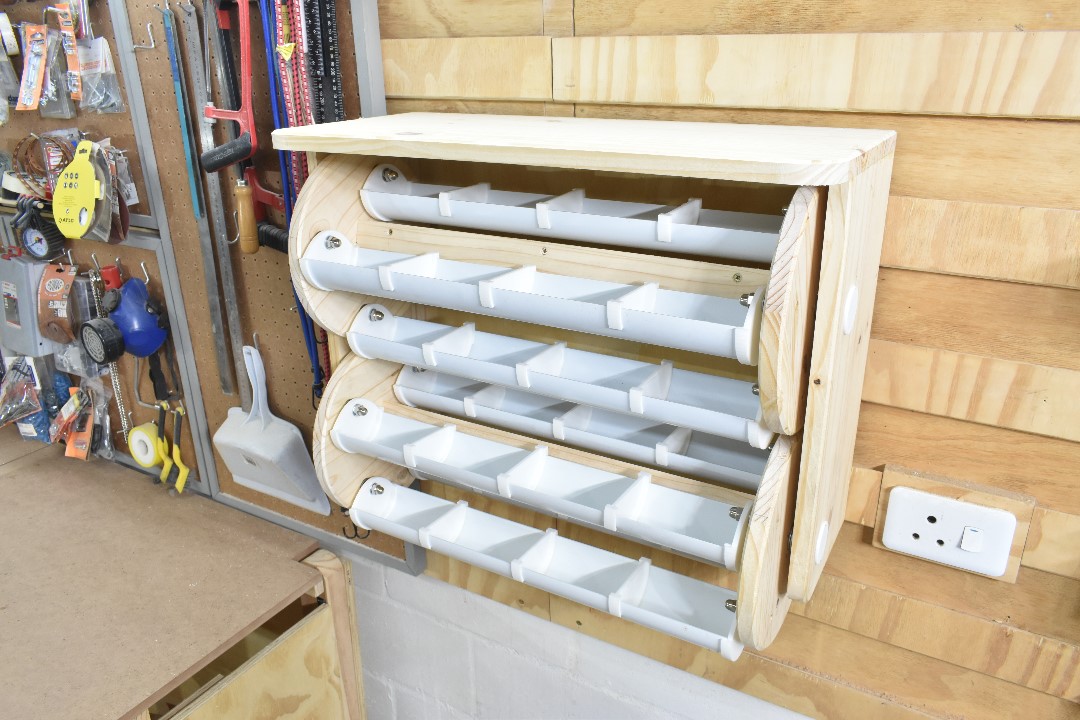

Small Parts Storage Maximizer- DIY Woodworking Plans
Hobbyshop woodworking plans for a Small Parts Storage Maximizer, inclusive of detailed woodworking plans and a cuttings list. Available in both metric and imperial measurements (fractions).
A functional, easy-to-build woodworking project.
As a woodworker, there are so many small parts, screws, tools, and so on that we accrue over the years. The longer you have been doing this, the more items you have lying around. Nothing is more irritating than knowing you purchased something a few weeks back but you just can’t for the life of you remember where you put it. Organizing parts and screws is a vital task for any DIY or even professional woodworker. There are plenty of off-the-shelf items that you can purchase for organizing your miscellaneous parts but finding the exact right one can be tedious. I found that nothing I could purchase quite met my needs. I, therefore, decided to create my own DIY Small parts organizer. It’s very functional and meets all of the requirements I had for a Small Part Organizer, maximizing the amount of storage with a relatively small footprint. I chose to mount mine to my French cleat Wall but you can modify it to adapt to your workshop requirements.
NB: Please note that 3D Printing is required to build the Small Parts Storage Maximizer. Here are the STL files for the 3D Printing. Small Parts Storage Maximizer STL Files
NOTE! Plans are made available in METRIC and IMPERIAL but were designed and built in METRIC using METRIC standard sizes. The plans were then converted directly to IMPERIAL measurements- Fractions
Check out some other plans we have available:
- Large Square Framed Planter| Beginner Woodworking Plan
- Small Horizontal Planter| Simple Woodworking Plans
- Universal Outfeed support
- Ultimate DIY Tool Storage For Small Workshops
- Portable Firewood Storage Cart-DIY| Easy Assembly
- Space Saving Table Saw Station
Product Disclaimer
The use of woodworking power machines and tools can be hazardous!
The above plans are for the Woodshop Junkies DIY Small Parts Storage Maximizer, designed, built, and used by myself, Jean, from the Woodshop Junkies Youtube channel.
I am not a professional woodworker or engineer. These plans do not constitute professional advice and are made available for general information purposes only!
The Woodshop Junkies DIY Small Parts Storage Maximizer Plans were designed to be a practical DIY, easy-to-build project that also provides a lot of functionality to my workshop.
We at Woodshop Junkies take no responsibility for damage or harm to anyone as a result of a failure with the DIY Small Parts Storage Maximizer. The design was based on my requirements and modifications or strengthening of certain components might be needed depending on your desired application.
Please note that no load tests were performed and the purchaser is solely responsible for ensuring the safe operation of the DIY Small Parts Storage Maximizer Plans.
I (Jean) accept no responsibility or liability for any damage or injury suffered due to any form or use of these plans.
ALWAYS WORK SAFELY AND FOLLOW THE SAFETY INSTRUCTIONS AS SET OUT IN THE USER MANUALS OF YOUR EQUIPMENT.
