A Simple, Easy-to-Build Multi-Use Storage Shelf
Hobbyshop woodworking plans for a compact and versatile Undershelf Storage Extension, including detailed woodworking plans and a cutting list. Available in both metric and imperial measurements (fractions).
Note that the Under Shelf Drawer can be adapted to any size shelf that you might have, or want to build. The size of the Under Shelf Drawer would simply need to be modified to the desired dimensions. The sizes noted in the plan are for the specific size wall unit that i constructed.
Maximize Your Workshop Space!
Unlock More Space: Introducing the Under Shelf Storage Extension!
As many of you know— and I’m sure have experienced— the struggle for storage is real. We constantly find ourselves needing more space for tools, bits, fasteners, and hardware, yet our workshops remain the same size. That’s where creativity comes into play, and our Under Shelf Storage Extension is here to help! Designed for DIY woodworkers and those with small workshops or single-garage setups, this innovative storage solution makes the most of your limited space. Unlocking additional storage where previously there was just empty space. Allowing you to store and easily access your essential tools and materials without cluttering your workspace. With the undershelf storage, you won’t need to rummage through cluttered drawers full of random things to find what you are looking for. The drop-down feature enables the stored items to be easily identified. Make the project your own and custom-build some tool holders or 3d print some brackets for your unique storage needs.
Key Features:

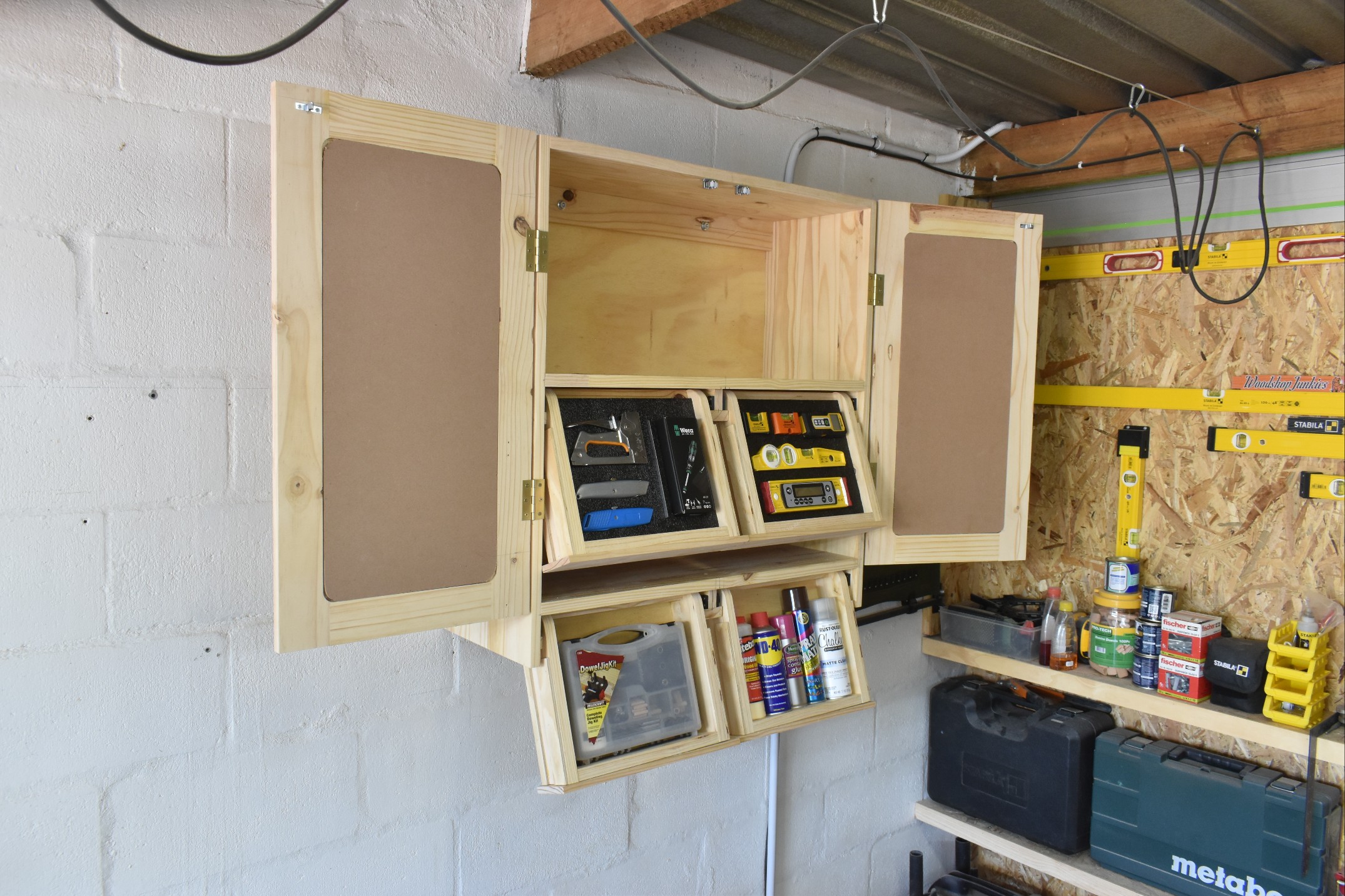

- Folding Down Shelf: Effortlessly opens up to provide extra storage space when needed and folds away when not in use, maximizing your available area.
- Easy Access: Designed for convenience, you can quickly grab what you need without digging through piles of equipment.
- Versatile Storage: Perfect for storing tools, supplies, and other workshop essentials, making it an essential addition to any DIY enthusiast’s space.
- Optimize Every Inch: Ideal for small workshops and garages where every inch counts.
Don’t let limited space hamper your creativity! Transform your workshop into an organized and efficient workspace with our Under Shelf Storage Extension.
STL Files
Download the STL files for free. Please see the link below, which will link to a zip file with all of the STL files. Please take into consideration that the STL files were specifically produced based on my size drawer and shelf. Yours may differ and would require some customization.
These files are automatically sent with the purchase of the plan as well. https://thewoodworkersplans.com/wp-content/uploads/2026/01/036-DRAWER-STUD.zip

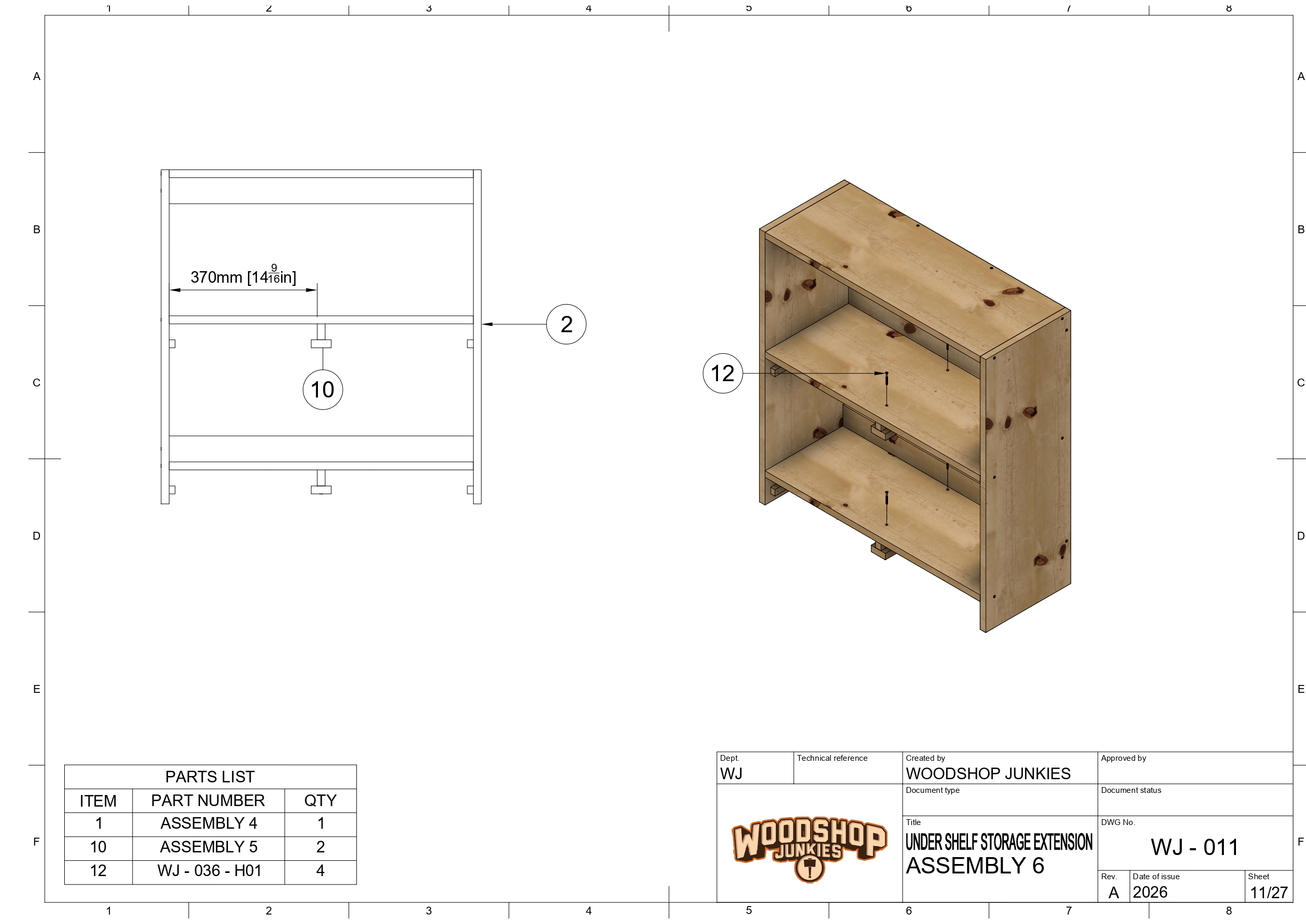

Below is an example of the layout of the plans.
Check out some other plans we have available:
- Large Square Framed Planter| Beginner Woodworking Plan
- DIY| Workshop Bit Storage Cabinet
- Small Horizontal Planter| Simple Woodworking Plans
- Universal Outfeed support
- Ultimate DIY Tool Storage For Small Workshops
- Portable Firewood Storage Cart-DIY| Easy Assembly
- Space Saving Table Saw Station
- Small Workshop Table Plans
Product Disclaimer
The use of woodworking power machines and tools can be hazardous!
The above plans are for the Woodshop Junkies Undershelf Storage Extension, designed, built, and used by myself, Jean, from the Woodshop Junkies Youtube channel.
I am not a professional woodworker or engineer. These plans do not constitute professional advice and are made available for general information purposes only!
The Woodshop Junkies Workshop Undershelf Storage Extension Woodworking Plans were designed to be a practical DIY, easy-to-build project that also provides a lot of functionality to my workshop.
We at Woodshop Junkies take no responsibility for damage or harm to anyone as a result of a failure with the Under Shelf Storage Extension. The design was based on my requirements, and modifications or strengthening of certain components might be needed depending on your desired application.
Please note that no load tests were performed and the purchaser is solely responsible for ensuring the safe operation of the Undershelf Storage Extension.
I (Jean) accept no responsibility or liability for any damage or injury suffered due to any form or use of these plans.
ALWAYS WORK SAFELY AND FOLLOW THE SAFETY INSTRUCTIONS AS SET OUT IN THE USER MANUALS OF YOUR EQUIPMENT.
